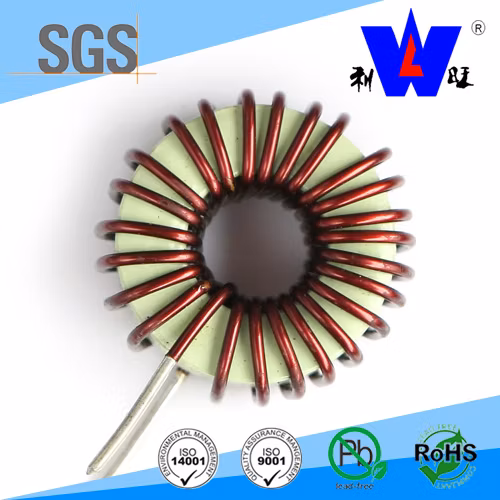

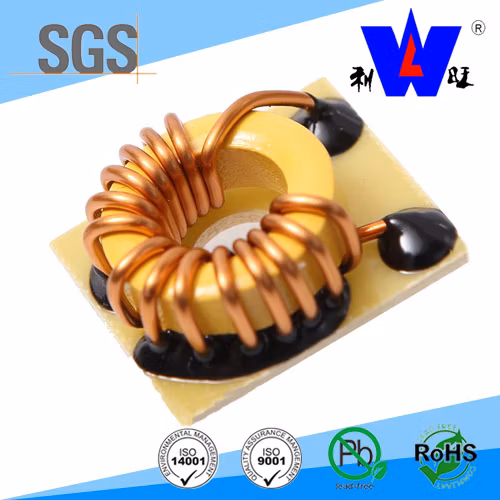

Industrial Control/Intelligent Meter/Consumer Electronics Use, Customized Choke Coil Toroidal Inductor/Ring Inductors (common mode) with RoHS

Industrial Control/Intelligent Meter/Consumer Electronics Use, Customized Choke Coil Toroidal Inductor/Ring Inductors (common mode) with RoHS

Overview Electrical Specification ELECTRICAL SPECIFICATIONS: Rated Voltage 250 VAC. Rated Current 0.5A to 15A. Rated ind
SHARE

Description

Basic Info
Model NO. FACM20BV
Usage Single-phase Transformer, Rectifier Transformer, Combined Transformer, Power Transformer, Distribution Transformer
Frequency Characteristics High Frequency
Shape of Core EE
Rated Voltage 250 VAC
Rated Current 0.5A to 15A
Rated Inductance 1.0 Mh to 20mh
Inductance Tolerance Min at 20°c
Operating Temperature Range -40°c to +105°c
Transport Package CTN
Trademark PAIRUI OR OEM
Origin China
Product Description
Electrical Specification

ELECTRICAL SPECIFICATIONS:

Rated Voltage 250 VAC.
Rated Current 0.5A to 15A.
Rated inductance 1.0 mH to 20mH.
Turns Ratio:N1:N2=1:1±2%
Hi-pot:1500VAC/5mA/2 Second.
Test Frequency Response:10KHz/100mV.
Inductance tolerance: Min at 20°C
Operating Temperature Range: -40°C to +105°C
All Parts Meet RoHS Compliance.
Product Identification

PRODUCT IDENTIFICATION:

CM 14 BV 103 Y 0R7
a b c d e f
a:Common mode
b:Size
c:'V' is Vertical Install shape,'H' is Horizontal Install shape
d:InductanceValue[101:10DuH;102;1000uH;103:10000uH]
e:lnductance tolerance: minimum value
f:Rated current(0R2:0.2A;1R2;1.2A;10R2:12A]

Industrial Control/Intelligent Meter/Consumer Electronics Use, Customized Choke Coil Toroidal Inductor/Ring Inductors (common mode) with RoHS


About Fuan

Our two factories and offices:

Industrial Control/Intelligent Meter/Consumer Electronics Use, Customized Choke Coil Toroidal Inductor/Ring Inductors (common mode) with RoHS


Fuan Electronics founded in 1986, is well-known by PAIRUI. PAIRUI's new headquarter is located in Tianchang City, Anhui pro. China. The total covered area is 52,000 square meters currently employing over 1450 employees.
Fuan Electronics, which is a manufaturer vendor in power supply, high frequency/ low frequency transformer, SMD inductor, DIP inductor, toroidal inductor, current transformer, etc. These products are widely used in Lighting, Industry, New energy, Motivity, Automotive, and all other areas of electronics.

We have experience more than 36 years and are welcome ODM and customized designs. Below are our application and certifications:

Industrial Control/Intelligent Meter/Consumer Electronics Use, Customized Choke Coil Toroidal Inductor/Ring Inductors (common mode) with RoHS

Industrial Control/Intelligent Meter/Consumer Electronics Use, Customized Choke Coil Toroidal Inductor/Ring Inductors (common mode) with RoHS


*FAQs:

Q1: Are the free samples available?
Yes, most of the products are available within a certain quantity and they are free of charge.

Q2: What is the standard lead time?
* Smaples: 7-10 working days.
* Mass production: 6-8 weeks.
* Stock: within one week.

Q3: What are the advantages?
* Mostly bobbin & core are produced by Fuan, we can control the cost and lead time very well.
* Automatic production line to ensure the capacity and the product consistency.
* Semi-automatic production line and experienced workers to complete custom-made products.
* R&D team support customers at the design stage and help customer to achieve mass production.
* With more than 36 years experience in the field of electronic components, Fuan knew the market and also what customers want.
* Fuan products are sold all over the world and used in various applications, and well known as "PAIRUI" in the market.

Q4: What is the payment term?
We start with 100% in advance, and then we can give better payment terms as long as our business increased.
